Dynamic composition: nested content

Hierarchical data appears in many documents: product category trees, organization structures, tables of contents, nested bills of materials, and so on. Such structures usually have an arbitrary depth that is known only at runtime.

Because QuestPDF layouts are composed with ordinary C# methods, rendering a tree is as simple as writing a method that calls itself for each child node.

Data model

Each node holds its own data and a list of child nodes:

public sealed record CategoryNode(
    string Name,
    int ProductCount,
    List<CategoryNode> Children);

var catalog = new CategoryNode("All products", 231, [
    new("Electronics", 154, [
        new("Computers", 89, [
            new("Laptops", 52, []),
            new("Desktops", 37, [])
        ]),
        new("Audio", 65, [])
    ]),
    new("Office supplies", 77, [
        new("Paper", 41, []),
        new("Writing instruments", 36, [])
    ])
]);

Composition

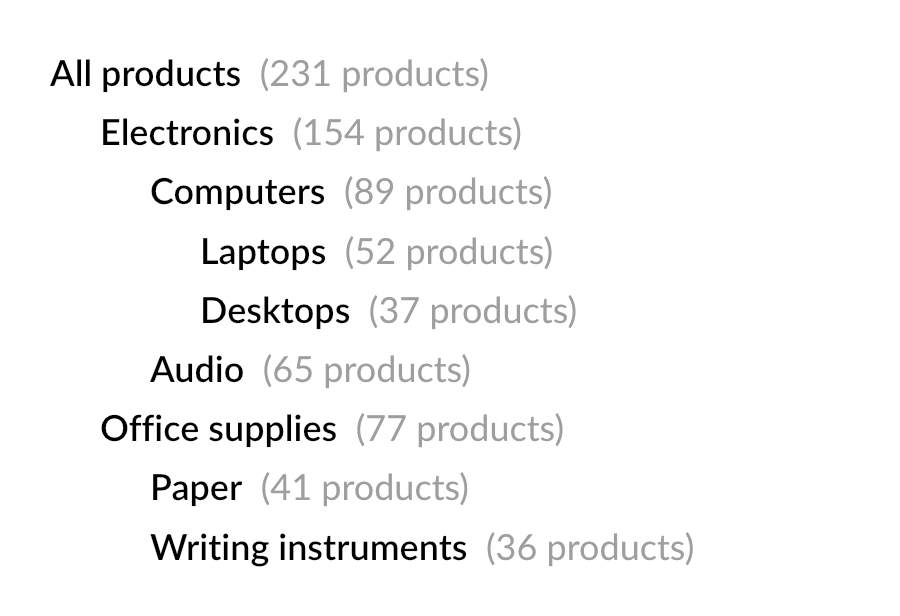

The composition method renders the current node and then invokes itself for every child. The depth parameter is incremented on each level and controls the left indentation, making the hierarchy visible.

private void ComposeCategory(IContainer container, CategoryNode node, int depth = 0)
{
    container.Column(column =>
    {
        column.Item()
            .PaddingLeft(depth * 25)
            .Text(text =>
            {
                text.Span(node.Name).SemiBold();
                text.Span($"  ({node.ProductCount} products)").FontColor(Colors.Grey.Medium);
            });

        foreach (var child in node.Children)
        {
            column.Item()
                .PaddingTop(8)
                .Element(x => ComposeCategory(x, child, depth + 1));
        }
    });
}

TIP

The Column element supports paging, so even large trees flow naturally across multiple pages.

Usage

To start the recursion, invoke the composition method with the root node:

container.Element(content => ComposeCategory(content, catalog));
