Layers ​

The Layers element adds content either underneath (as a background) or on top of (as a watermark) the main content.

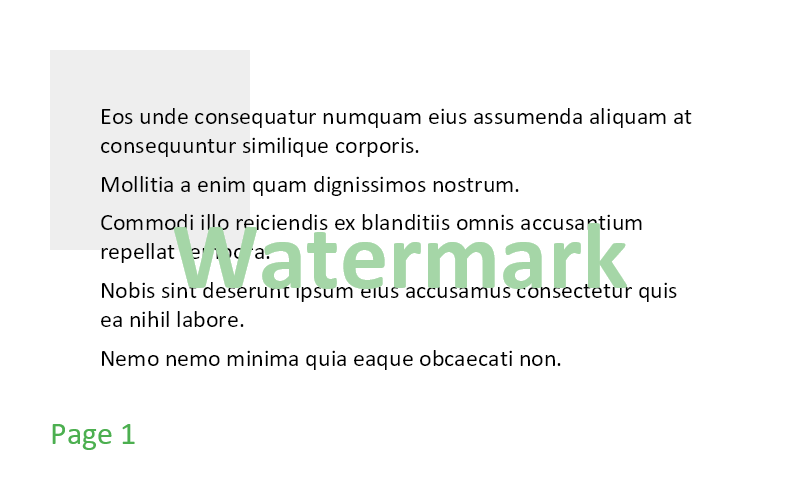

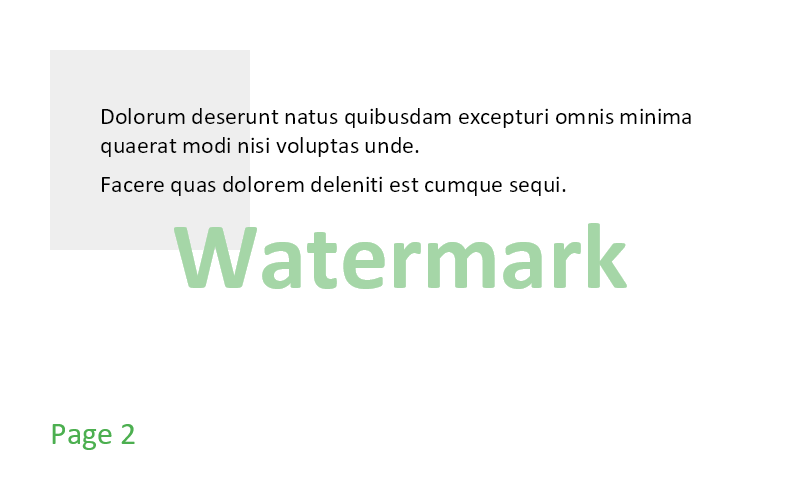

The main layer supports paging, can span multiple pages, and determines the container's target length. Additional layers can also span multiple pages: like the main layer, a long layer continues on the next page, but it is not repeated on each one. For content on every page, such as a watermark, use the page's Background or Foreground slot.

MethodDescription
PrimaryLayerSets the primary content for the container.
LayerSpecifies an additional layer for the container.

WARNING

Exactly one PrimaryLayer must be defined.

TIP

The order of code execution determines the drawing order:

  • If the layer is defined before the primary layer, it's drawn underneath the primary content (as a background).
  • If defined after the primary layer, it's drawn in front of the primary content (as a watermark).

Example ​

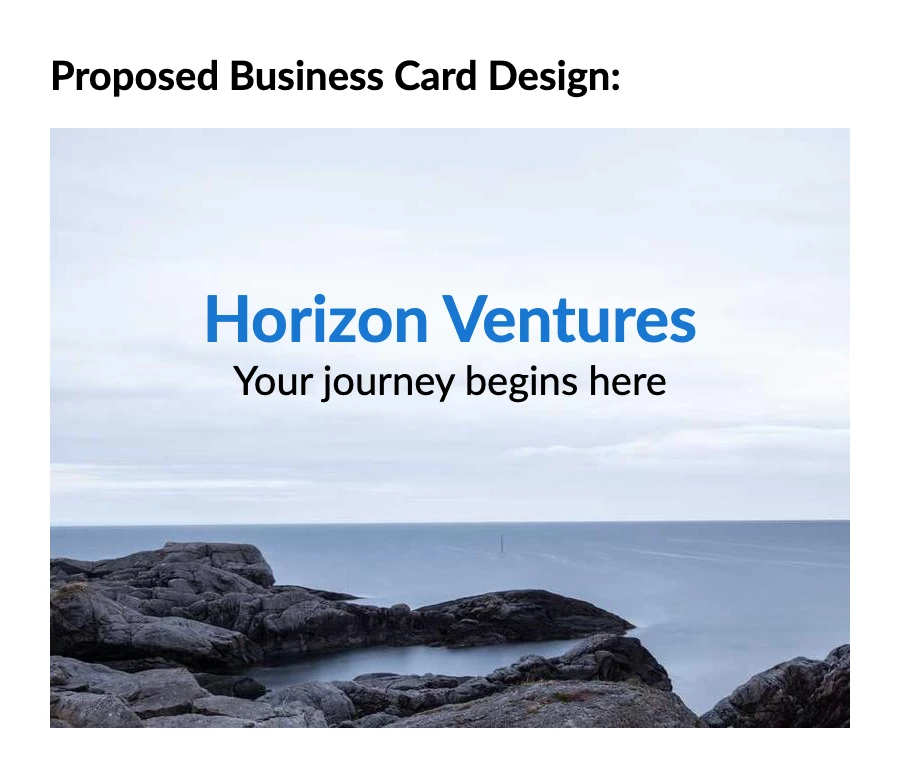

A common use-case for this element is to add background content behind the main content.

csharp
.Column(column =>
{
    column.Item().PaddingBottom(15).Text("Proposed Business Card Design:").Bold();

    column.Item()
        .AspectRatio(4 / 3f)
        .Layers(layers =>
        {
            layers.Layer().Image("Resources/card-background.jpg").FitUnproportionally();

            layers.PrimaryLayer()
                .OffsetY(75)
                .Column(innerColumn =>
                {
                    innerColumn.Item()
                        .AlignCenter()
                        .Text("Horizon Ventures")
                        .Bold().FontSize(32).FontColor(Colors.Blue.Darken2);

                    innerColumn.Item().AlignCenter().Text("Your journey begins here");
                });
        });
});

example
